AMARI Callbox Mini

Overview

The AMARI Callbox serves as the optimal solution for testing both 4G and 5G devices, functioning as a 3GPP compliant eNB/gNB and EPC/5GC to facilitate functional and performance testing. Powered by a carrier-grade software suite, the AMARI Callbox Mini, the smallest among the AMARI Callboxes, is specifically designed for IoT applications.

This compact callbox offers a single cell with a configuration of up to 20MHz 2x2, catering to the connectivity needs of NB-IOT, LTE-M, LTE, RedCap, and 5G SA devices. It's important to note that the Mini does not support NSA mode, as this would require two cells. For higher configurations, options are available using AMARI Callbox Classic, Advanced, Ultimate, and Extreme.

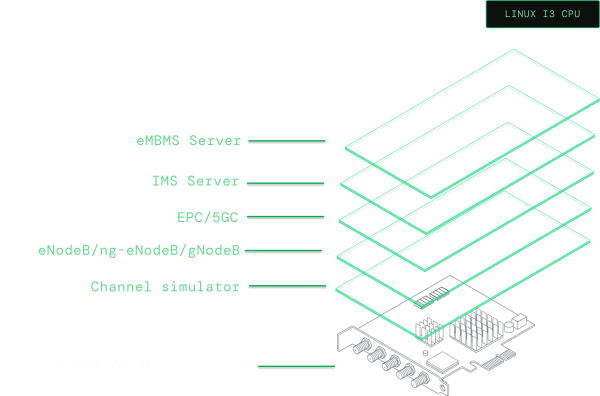

AMARI Callbox Mini high level architecture
In stock - Lead time 4 weeks - Contact us

Capabilities

icon for 5G

5G

The callbox can act as a 5G standalone mode (SA) network. 5G Non Terrestrial Network (NTN) and 5G Reduced Capacity (RedCap) are also supported.

icon for LTE

LTE

Even if it is designed for 5G, this callbox provides with the best of Amarisoft LTE technology.

icon for LTE-M

LTE-M

The callbox supports LTE-M in both FDD and TDD to connect CAT-M1 devices.

icon for NB-IOT

NB-IOT

The callbox supports standalone, in-band and guard-band NB-IOT to connect NB1 and NB2 devices. It also supports Non Terrestrial Network (NTN) NB-IOT.

icon for 4G 5G User Equipments

Up to 500 UEs

Powered by a macro base station software, depending on the callbox model and configuration, it can handle up to 500 concurrent active UEs.

icon for 4G 5G Downlink and Uplink throughput

200 Mbps - 75 Mbps

Depending on the callbox configuration and the UE capabilities, the callbox can deliver up 200 Mbps in downlink and 75 Mbps in uplink.

icon for 4G 5G handover

Handover

On a single callbox, intra eNB/gNB handover is supported. Inter eNB/gNB handover is supported using two callboxes.

icon for 4G 5G Carrier aggregation

Carrier aggregation

The callbox can aggregate multiple TDD and FDD LTE, NR FR1 and NR FR2 cells for high throughput testing.

icon for Voice over LTE (VoLTE), Voice over NR (VoNR) and Voice over WiFi (VoWiFi)

VoLTE VoNR VoWiFi

The embedded IMS Server allows VoLTE, VioLTE, VoNR, VioNR, SMS and emergency call testing. The embedded N3IWF allows VoWiFi by connecting an external WiFi access point.

Highlighted features

Logging and Measurements

Logging and Measurements

Selective logging and display of all layers of 3GPP LTE and NR stacks as well as useful graphs and analytic tools. Log example

Automatic Test Setup and Scripting

Automatic Test Setup and Scripting

Extensive WebSocket API allowing to send remote commands to eNodeB, ng-eNodeB, gNodeB, EPC and 5GC to ease test automation. Tutorial

Easy Configuration

Easy Configuration

Easy configuration thanks to JSON files with example configurations already included in each software release for eNodeB, ng-eNodeB, gNodeB, EPC and 5GC.

End to End Data Testing

End to End Data Testing

Running on top of standard Linux in user space mode allowing easy integration with IP services.

Channel Simulation

Channel Simulation

Simulation of different DL channel types as per 3GPP models specified in 36.101 and 38.141 specifications. Tutorial

Feature testing

Feature testing

Test features to override the nominal protocol behavior in order to simulate error cases.

High Performance

High Performance

Highly optimized software supporting multiple UEs and cells and high data rates in LTE and NR.

3GPP Features

3GPP Features

Early access to 3GPP features for rapid validation of features under development.

Frequency Agnostic

Frequency Agnostic

Support of a wide range of FDD and TDD frequency bands even nonstandard ones allowing to test in Sub-6GHz and mmWave. mmWave available on the AMARI Callbox Advanced, Ultimate and Extreme as an option. Tutorial

Architecture

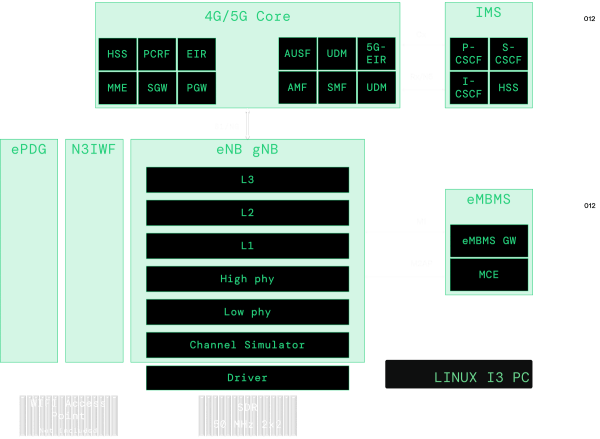

AMARI mini low level architecture

Possible RAN Configurations

RAN Configuration constraints

The AMARI Callbox Mini is capable of operating only one cell at a time (NB-IoT, LTE, LTE-M or 5G FR1). The product of cell bandwidth multiplied by the number of MIMO layers shall not exceed 40MHz.

RAN Configuration examples

4G LTE1 cell 20 MHz 2x2
5G NR SA Mode1 cell 20 MHz 2x2 or 40 MHz SISO
NB-IOT1 NB-IoT cell in standalone, in-band or guard-band mode
LTE-M1 LTE cell with CAT M1 support

Hardware components

Callbox and accesories

Callbox Specification
Dimensions H × W × D7.8 cm × 20 cm × 25 cm
Weight2 kg
# AMARI PCIe SDR 2x2 Cards1
Power supply voltage100 - 240V AC
CPUIntel i3
Accesories
AMARI antennas as accessory of AMARI Callbox4 antennas are included and connect to callbox SDRs throught standard SMA port for over the air testing. AMARI Test SIM Cards5 programmable SIM Cards are included and already registred in the Callbox core user database.

AMARI PCIe SDR 2x2 Card

AMARI PCIe SDR 2x2 is a software defined radio (SDR) card using AD9361 2x2 RF transceiver. It supports MIMO 2x2, FDD and TDD operations in any frequency between 500 MHz and 6GHz. It has an integrated GPS for precise time and frequency synchronization. The cards can be easily chained thanks to a provided cable allowing clock and PPS propagation in between the cards. This will facilitate testing of higher MIMO layers and carrier aggregation. The total bandwidth of the card is 56 MHz, and its output power is around 0 dBm depending on the used frequency. The card requires at least gen 2 PCIe slot. This RF is used in AMARI Callbox Mini, AMARI Callbox Classic and AMARI UE Simbox LTE Series products.

Technical doc

AMARI PCIe SDR 2x2 Card is an Amarisoft Software Defined Radio designed for LTE
AMARI PCIe SDR 2x2 Card technical specification
Dimensions H × W × D 2 cm × 11.5 cm × 12.8 cm
Weight 0.1 kg
Frequency range 500 MHz to 6.0 GHz
RF bandwidth 200 KHz to 56 MHz
Power supply voltage 12 V DC input
Operation mode FDD and TDD
MIMO 2x2
ADC/DAC sample rate 61.44 MS/s
ADC/DAC resolution 12 bits
Frequency accuracy 2 ppm
PCIe minimum requirements 1x / Gen 2
LTE 20MHz 64QAM EVM <4% RMS (f<3.5 GHz)
<2% RMS (f<2.6 GHz)
Synchronization Internal clock , PPS signal, GPS , Reference external clock (LVDS)

Software components


vRAN eNodeB gNodeB

A release 17 full software eNodeB gNodeB including layer3, layer 2, layer1 and physical layer. It also includes a channel simulator. It connects to a split 8 or split 7.2 radio front end through an open API via a driver. It supports a standard S1/NG interface to connect a 4G or 5G core network. The eNodeB gNodeB is configurable through hundreds of parameters in a text file in JSON format. It has a WebSocket API for automation, and a command line interface. Detailed spec

Technical doc

eNodeB gNodeB vRAN low level architecture and interfaces legend

4G 5G CORE

A compact release 17 core network with built-in MME, SGW, PGW, PCRF, HSS, EIR, ePDG, AMF, AUSF, SMF, UPF, UDM and 5G-EIR. Detailed spec

Technical doc

4G CORE EPC and 5G CORE 5GC architecture and interfaces legend


IMS Server

An IMS standalone simple server. It has a built-in P-CSCF, I-CSCF, S-CSCF, HSS. Detailed spec

Technical doc

IMS Server architecture and interfaces legend


eMBMS Gateway

An LTE multimedia broadcast multicast services gateway with buit-in MCE. Detailed spec

Technical doc

eMBMS Server architecture and interfaces legend
